Packaging mode of electric motorcycle
May 13, 2021

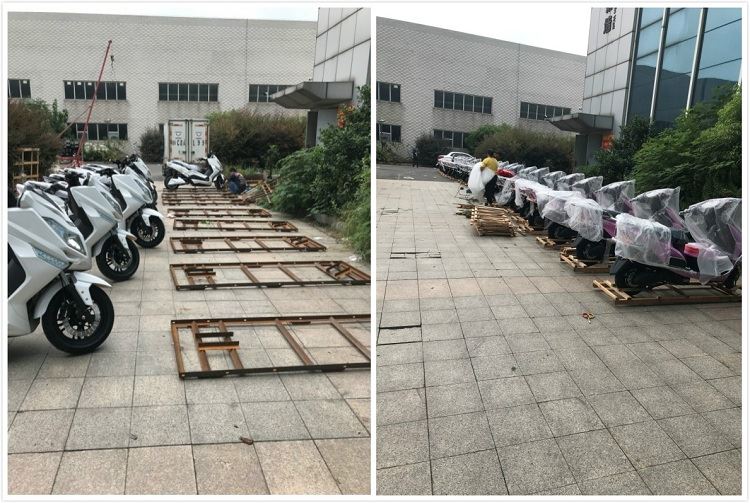

When transporting electric motorcycles, choosing scientific and reasonable packaging can protect products, facilitate storage and transportation, and save costs, so we should also choose appropriate packaging methods. Domestic electric motorcycles are mainly packed with wooden frame structure and cardboard boxes, while export electric motorcycles are mainly packed with composite board boxes, iron frame boxes and honeycomb cardboard boxes, and iron frame packaging is widely used, which is relatively low in cost.

First of all, we should pay attention to protecting the appearance parts of electric motorcycles in packaging. Generally, PE foam paper or EPE plastic film is used to wrap the protruding surfaces of electric motorcycles, such as instrument cover, head cover, front panel joint, flat fork guard plate, etc., which is economical, beautiful and effective. Secondly, according to the structural characteristics of the electric motorcycle, it is necessary to simulate the stress points of the electric motorcycle in the working state, so that the whole model can achieve stress balance in front and back, left and right, up and down, and there is no relative movement in the packing box. Therefore, it is necessary to select suitable fixing points for the direction, front fork, rear wheel, pedal and rear hanger of the electric motorcycles, and analyze the force of each fixing point.

In addition, different logistics and transportation links will have different impacts on the packaging of electric motorcycles, and logistics packaging should prevent over-packaging and weak packaging. If it is transported by train, it is required that the packing box should be as small as possible on the premise that it can protect the goods, so as to facilitate the arrangement and combination and make full use of the space. In case of sea packing, pay attention to the design of length, width and height of packing box. In areas with high humidity or rainy season, it is best to coat the surface of packaging cartons with moisture-proof latex, and some important electroplated parts of electric motorcycles should be coated with antirust oil. It is even more necessary to strengthen moisture resistance after shipping, and the moisture content of cartons should be 3% lower than normal. In addition, in order to make the packaging box small and save packaging materials, transportation costs and storage costs, the more prominent parts of electric motorcycles, such as rearview mirrors, front wheels, fenders, turn signals, etc., can be removed.
